High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Name: High temperature resistance magnetic buzzer SMD 36V 2700Hz LCP High sounds
Brand: Laimi
Price: 1 USD

China High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds wholesale

Brand Name : Laimi

Model Number : TM-8503H

Certification : ROHS/REACH

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : Western Union, MoneyGram, T/T , Paypal

Supply Ability : 1000000pcs/Month

Delivery Time : 2 weeks

Packaging Details : safety packing

Housing Material : LCP

Frequency : 2731HZ

sounds : min 80db

voltage : 3V

Coil Resistance : 12ohms

Current : MAX 80mA

Contact Now

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Features of 3.6V magnetic buzzer 2700Hz

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

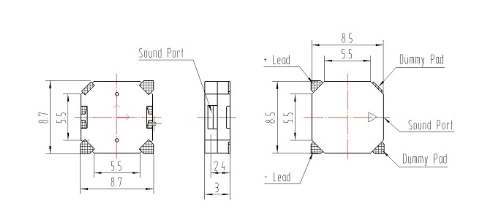

Dimensions Unit: mm

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

*Unit: mm; Tolerance: ±0.3mmExcept Specified

*Housing Material: Black LCP

*Terminal plate: 3 soldering pads, tin Plating Brass

Buzzer SMD Model Details

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value

1	Rated Voltage	3.6 Vo-p
2	Operating Voltage	2.5~4.5 Vo-p
3	Rated Current	Max.100mA ,at 2700Hz 50% duty Square Wave 3.6Vo-p
4	Sound Output at 10cm	Min. 85dB,at 2700Hz 50% duty Square Wave 3.6Vo-p
5	Coil Resistance	16±3Ω
6	Resonant Frequency	2700Hz
7	Operating Temperature	-20℃~+70℃
8	Store Temperature	-40℃~+85℃
9	Net Weight	Approx 1g
10	RoHS	Yes

agnetic Buzzer Electrical And Acoustical Measuring Condition

Recommended Driving Circuit

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Recommended Setting

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Buzzer SMD Advantages

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
